Case studies
Pile group
design for highway
viaduct in central England, UK
Repute has been used by Mott MacDonald (UK) for the design of a group of 18 piles with an initial length of 23m and a diameter of 900mm, subjected to a combination of vertical loads, horizontal loads and moments.

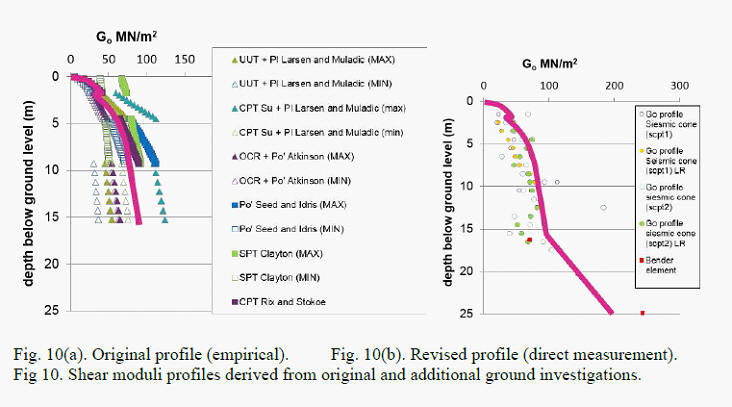

Based on the original GI (mainly SPT-N values), preliminary pile group design has been carried out using Repute non-linear analysis. Subsequently, an additional GI (CPT, SCPT, piezocone, bender element test) and preliminary pile tests were carried out to confirm preliminary design (Fig. 10).
Repute

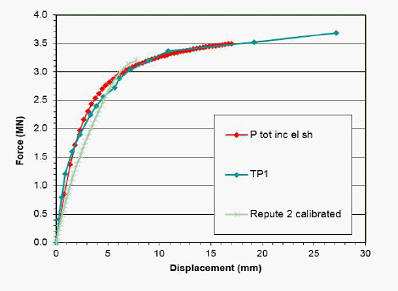

analysis for single pile was calibrated against the pile test data, using
the Go profile derived from the additional GI. This calibrated single-pile
model was then incorporated into Repute to assess the pile group response,

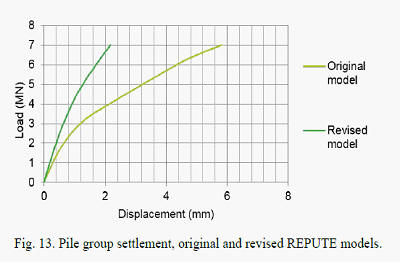

indicating that the pile groups were much stiffer than originally assumed
(Fig. 13).
This
has led to re-design of the pile groups with the front 2 rows of piles kept
at 23m long, but the remaining rows of piles shortened to 15m. Pile
reinforcement was also able to be reduced. This enabled a significant saving
in pile lengths (about 25%) and construction schedule. It is essential to

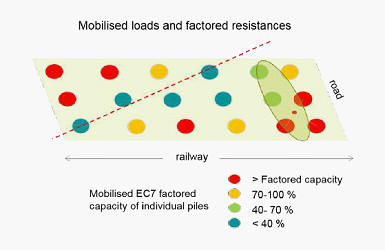

note that 7 out of 18 piles in the group were mobilizing most of their axial
geotechnical capacity, however the remaining 11 piles had a “reserve”
capacity so that it was possible to demonstrate that the “overall”
foundation system was robust and had a more than adequate geotechnical
capacity. This is a good example of "modern" pile-group design, based on the
load redistribution operated by the rigid cap, as e.g. supported by the
latest EN 1997-3: 2025, "Clause 6.5.5(11). The verification of
geotechnical ultimate and serviceability limit states for single piles may
be omitted provided it is verified that the pile cap is able to redistribute
loads without itself exceeding an ultimate or serviceability limit state”.
